FS300 Series Intelligent Pump Drive

FS300 series intelligent water pump AC Drive, Adopting an advanced integrated design of permanent magnet synchronous and asynchronous, integration of special PID control algorithms, with constant pressure water supply and frequency modulation dual mode of operation, can be flexibly switched to meet the diverse needs. The product body protection level up to IP54, fearless of complex environments, built-in multiple protection mechanisms, stable and reliable operation, to provide a full .

Product Name	FS300 Series Water Pump Special AC Drive	Principle of Work	PWM Pulse Width Modulation
Main Circuit Type	Voltage Source Inverter	Link of Transformation	AC to DC to AC
Input Voltage	200V Class: Single-phase 200V~240V ±15% 400V Class: Three-phase 380V~440V ±15%	Input Frequency	50Hz/60Hz ±5%
Output Voltage	Three-phase: 0%~rated input voltage, error < +3%	Output Frequency	0.00~599.00Hz, unit: 0.01Hz
Control Mode	Sensorless vector control (SVC)、V/F control	Speed Regulation Range	1:200 (SVC)
Speed Accuracy	±0.5% (SVC)	Torque Control Accuracy	5% (SVC)
Starting Torque	0.25Hz/150% (SVC)	Overload Capacity	150% rated current 60s, 180% rated current 1s
Carrier Frequency	1.0kHz~16kHz	Input Terminals	3 digital inputs 2 analog inputs (voltage/current optional, 010V/0/420mA)
Output Terminals	1 digital output 1 set of relay outputs 1 analog output (voltage/current optional,0-10V voltage or 0/4-20mA current outputs.	Communication	1 channel RS485 (Modbus RTU) 1 channel CAN
Display	LED keypad	Cooling Method	Forced air cooling
IP Grade	IP54	Rated Efficiency	≤7.5kW: ≥93% 11~22kW: ≥95%

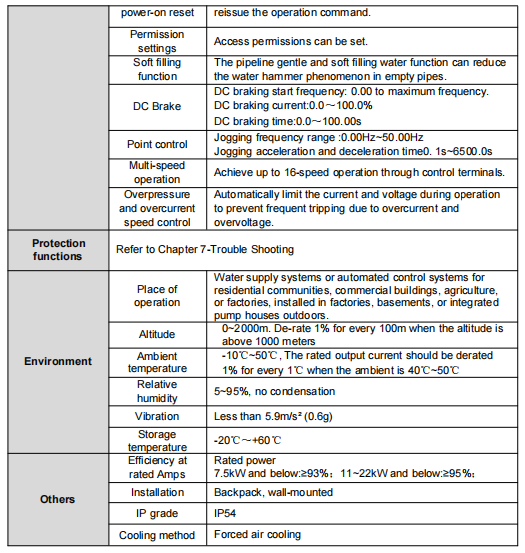

Installation Method	Backpack, wall-mounted	Ambient Temperature	-10℃~50℃(For every 1°C increase above 40°C, derate accordingly)
Ambient Altitude	0~2000m (For every 100 meters of elevation gain above 1,000 meters, the power rating is reduced by 1%)	Storage Temperature	-20℃~+60℃
Relative Humidity	5~95%, no condensation	Dimensions (W×H×D)	226×189×121mm
Featured Functions	Antifreeze function,Fire Override ,Intelligent full variable frequency mode...	Motor Type	AC Induction Motor

FS300 series AC drive, supports Sensorless Vector Control (SVC) and V/F control.

SVC provides a speed regulation range of 1:200 and a speed accuracy of 0.5%, delivering stable and precise motor control. It has strong overload capacity, withstanding 150% rated current for 60 seconds and 180% rated current for 1 second.

Designed specifically for water supply systems, it integrates multiple pump-specific functions including intelligent multi-pump full variable frequency mode, automatic master-slave switching and backup master, pump regular rotation, antifreeze function, water shortage protection, burst pipe detection, high/low pressure alarm, sleep and wake-up, and soft pipeline filling function, ensuring safe and reliable system operation.

It supports Modbus-RTU and CAN communication, has an IP54 protection grade, adopts forced air cooling, with rated efficiency ≥93% (≤7.5kW) and ≥95% (11~22kW). It is suitable for water supply systems or automated control systems in residential communities, commercial buildings, agriculture and factories.

FS300 Series User manual.pdf
