FG310 Series High Performance Vector AC drive
FG310 series AC drive is a product developed by adopting magnetic field oriented vector control technology on the high-performance vector technology platform of Fugong Power, which can easily drive induction motors. Under the premise of high performance and high reliability, the components are reasonably laid out to realize the book-style narrow body design, equipped with rich expansion interfaces and new expansion accessories, featuring high performance, high reliability, high power density.

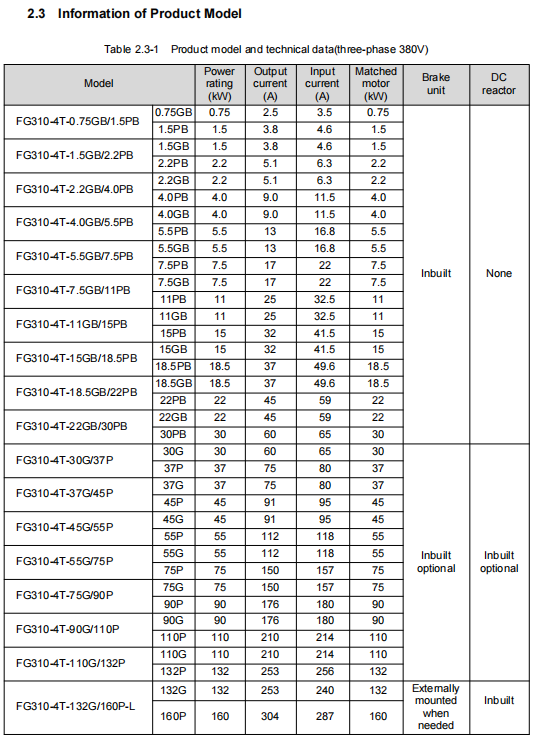

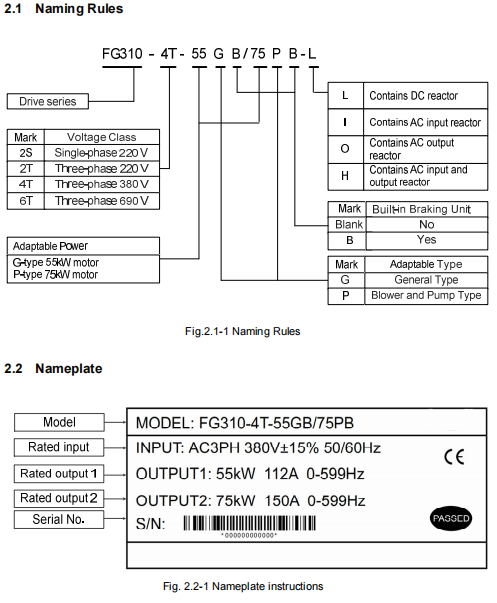

Model NO. | FG310-4T-11GB/15PB | Principle of Work | PWM Pulse Width Modulation |
Switch Mode | Yes | Main Circuit Type | Voltage Source Inverter |
Voltage of Power Supply | Low Voltage Variable-Frequency Drive | Link of Transformation | AC to DC to AC |
Nature of DC Power | Voltage Variable-Frequency Drive | Function | Motor Speed Regulation, Energy Saving, Protection |
Rated Power | 11kW(G type)/15kW(P type) | Product Name | AC Drive |
Input Voltage | Three-phase 380V±15% 50/60Hz | Control Mode | V/f, SVC, FVC |
Output Voltage | Three-phase 0~rated input V | Output Frequency | 0.00~599.00Hz |
Display | LED | Motor Type | AC Induction Motor |
Communication | RS485 (Modbus RTU) | Overload Capacity | G:150%/60s; P:120%/60s |
Specification | 116×320×185mm | Cooling Method | Forced air cooling |
IP Grade | IP20 |

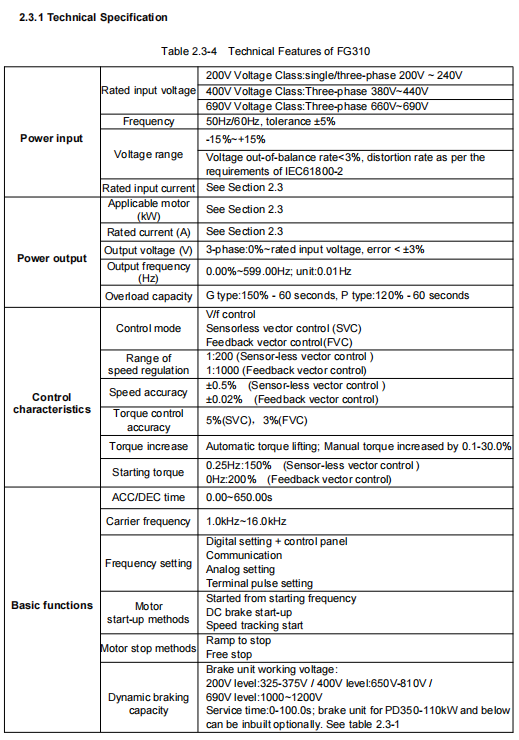

FG310 Series is a high-performance vector drive supporting V/F control, sensorless vector control (SVC) and feedback vector control (FVC). It supports 200–240V single/three-phase, 380–440V three-phase or 660–690V three-phase input, 50/60Hz±5%, voltage fluctuation ±15%. Output frequency 0.00–599.00Hz, carrier frequency 1.0–16.0kHz.

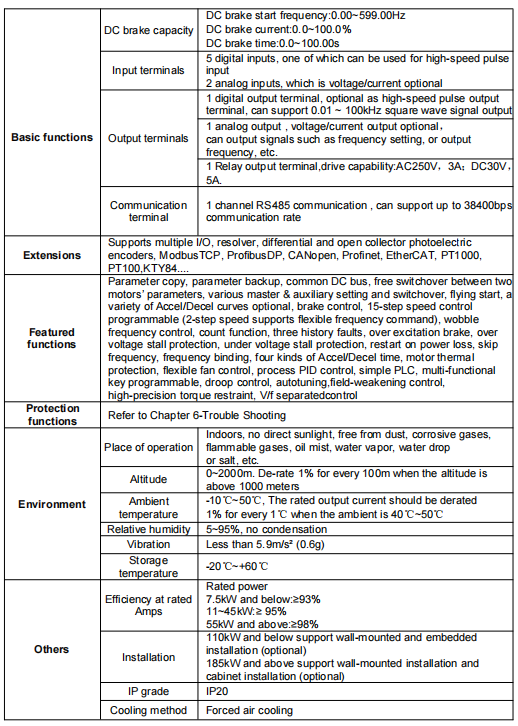

Equipped with rich I/O terminals and standard RS485 (Modbus RTU) communication, it supports extensions such as ModbusTCP, ProfibusDP, CANopen, Profinet and EtherCAT. Features built-in optional braking unit, parameter copy/backup, PID control, 15-step speed control, swing frequency, count function, dual motor parameter switchover, flying start and over-excitation braking.
Cooled by forced air, IP20 protection. Suitable for three-phase asynchronous motors and synchronous motors, with complete fault protection and centralized control capability.
