FG300 IP54 High-ingress Protection VFD

FG300 IP54 High-ingress Protection VFD is a product developed for harsh environments such as high humidity, high dust, high oil pollution, etc. With IP54 protection level, the product supports asynchronous motors and permanent magnet motors. At the same time, it strengthens the reliability and environmental adaptability of the product, as well as the customized and industrialized design, which makes the function more optimized and the application more flexible.

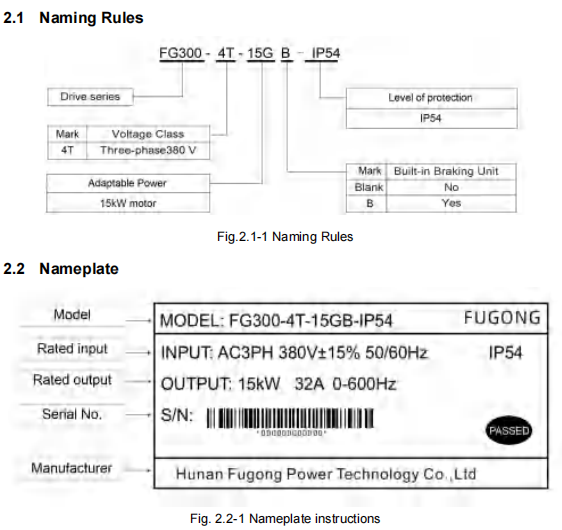

Model NO.	FG300-4T-15GB-IP54	Principle of Work	PWM Pulse Width Modulation
Switch Mode	Yes	Main Circuit Type	Voltage Source Inverter
Voltage of Power Supply	Low Voltage Variable-Frequency Drive	Link of Transformation	AC to DC to AC
Nature of DC Power	Voltage Variable-Frequency Drive	Function	Motor Speed Regulation, Energy Saving, Protection
Rated Power	15kW(G type)	Product Name	AC Drive
Input Voltage	Three-phase 380V~440V Frequency 50/60Hz	Control Mode	V/f, SVC, FVC
Output Voltage	Three-phase 0~rated input V	Output Frequency	0.00~600.00Hz
Display	LED	Motor Type	AC Induction Motor
Communication	RS485 (Modbus RTU)	Overload Capacity	G:150%/60s
Specification	168×455×125mm	Cooling Method	Forced air cooling
IP Grade	IP54

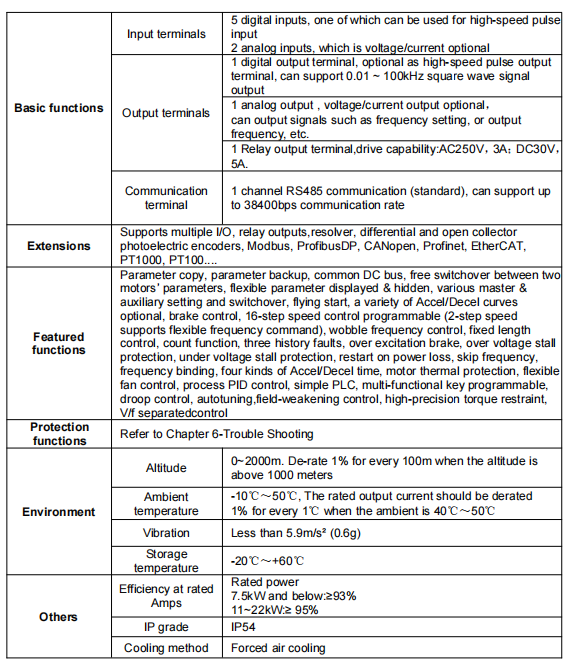

FG300 Series is a high-protection vector drive with V/f, sensorless vector control (SVC) and feedback vector control (FVC). It supports three-phase 380–440V input, 50/60Hz±5%, voltage fluctuation ±15%. Output frequency 0.00–600.00Hz, carrier frequency 0.5–16kHz, overload capacity 150% for 60 seconds.

Equipped with rich I/O terminals and standard RS485 (Modbus RTU) communication, supports ProfibusDP, CANopen, Profinet, EtherCAT and other extensions. Features built-in braking unit, parameter copy/backup, PID, 16-step programmable speed, swing frequency, fixed length, count, dual motor parameter switching and power loss restart functions.

Cooled by forced air, IP54 protection. Suitable for three-phase asynchronous motors, with complete fault protection and centralized control capability.

FG300 IP54 User manual.pdf
