Industrial Background
CNC engraving machine is also called Computer numerical control engraving machine, is a kind of precision numerical control engraving equipment. CNC engraving machine with high precision, high speed, fast response speed, smooth output, strong anti-interference ability, etc., the material for relief, flat carving, hollow carving, significantly improve the production efficiency of the carving process, in the carpentry, stone engraving, modeling, billboard engraving, molds, handicrafts production and other fields of wide application.
With the improvement of China's economic standard of living, infrastructure and real estate construction scale continues to expand, public buildings, residential districts, office buildings and other areas of signs, signs, plaques, plaques, decorative arts and crafts, furniture, advertising, souvenirs, and other market demand for engraving continues to increase.
CNC engraving machine process

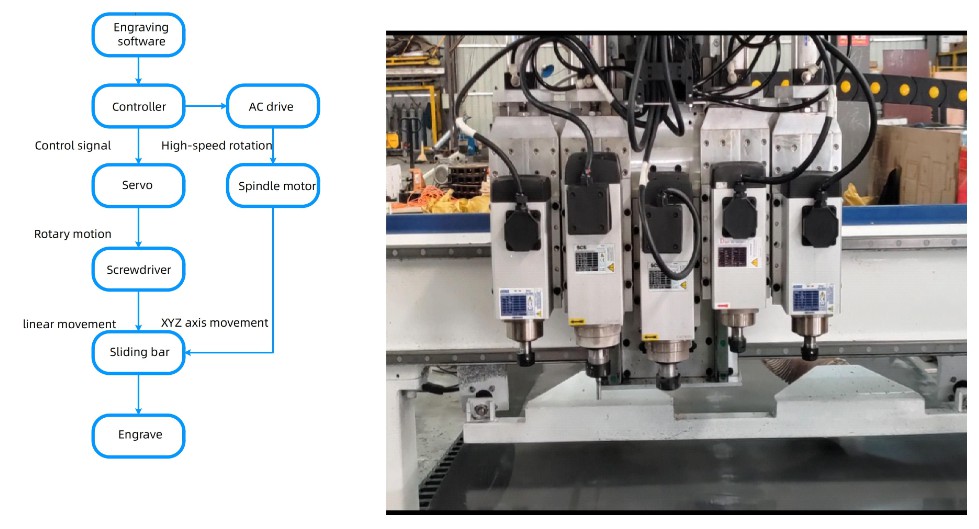

· CNC engraving machine working principle is through the computer on the special CNC engraving system software, graphics, text design, layout and export program, the program will be transmitted to the engraving machine controller, the controller converts this information into pulse signals to drive the X, Y, Z three-axis running track. At the same time control the AC drive to drive the spindle motor, the spindle motor drives the tool to rotate at high speed. According to the trajectory of x, Y, Z three-axis movement, the tool needs to process the material for cutting, milling, drilling and other processing, carving out a variety of flat or three-dimensional relief graphics and text, to realize the automation of engraving.
· Working Principle
FG300K All-in-One Solution Introduction
Traditional control system solutions:
· The traditional solution is one to four or two to four, which requires one or more AC drive, multiple AC contactors, complex wiring, cumbersome debugging, and low production efficiency.
FG300K All-in-One Features:
· Save on contactor and intermediate relay conversion costs;
· Reduced peripheral wiring, commissioning-free, wiring that is plugged into the available;O seconds to realize spindle switching, seamless connection and improve productivity;
· The motor is protected in all aspects, locating the point of failure, reducing the failure rate and improving the efficiency of the whole machine;
· Simple parameter setting, one key setting, easy debugging.
Wiring Diagram for All-in-One Engraving Machine
Concluding Remarks
FG300K all-in-one AC drive high-performance multi-function AC drive, designed for multi-axis CNC engraving system, to provide customers with mature and reliable system solutions, easy to install, easy to debug, easy to maintain, processing performance is excellent, the spindle tool change seamless, greatly improve production efficiency, recognized by customers.
